カッティングミル SM 50

お見積りは無料です!

各商品の「注文データ&見積依頼」のタブを開いて、お見積りご希望の商品にマークを入れると、見積カートに商品が入ります。商品右欄にマークをいれ、カートに入れると見積依頼リスト作成画面に進みます。コンタクトフォームに必要事項をご記入いただき送信すると、弊社担当者から折り返しお見積りをお送りいたします。

お問い合わせ

必要なアイテムがわからない、または一般的な見積もりを希望する場合は、こちらをご覧ください。

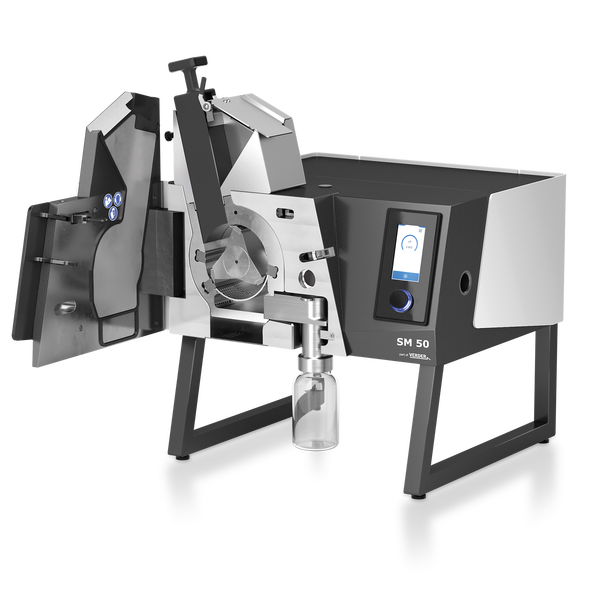

Cutting Mill SM 50

Cutting Mill SM 50 (please order milling chamber set, rotor, hopper and bottom sieve seperately)​
20.720.0001​
SM 50200-230V 50/60Hz, with frequency converter for variable speed
20.720.0003
SM 50110V 50/60Hz, with frequency converter for variable speed


Milling Chamber Sets SM 50

Consisting of milling chamber, double acting cutting bars, door insert and 500 ml glass bottle / receptacle
22.010.0003​For standard applications​: Aluminum milling chamber with stainless steel double acting cutting bars, stainless steel cyclone, aluminum door insert, and 500 ml glass bottle
22.010.0004​For corrosion resistant applications​: Stainless steel milling chamber with stainless steel double acting cutting bars, stainless steel cyclone, stainless steel door insert, and 500 ml glass bottle
22.010.0005​For grinding without heavy metal contamination​: Aluminum milling chamber with steel 1.1740 double acting cutting bars, stainless steel cyclone, aluminum door insert, and 500 ml glass bottle
22.010.0006​For grinding without cyclone: Aluminium gravitiy chamber with stainless steel double acting cutting bars​, aluminium door insert, adapter incl. stainless steel 3 l receptacle


Rotors SM 50

22.608.00413-disc rotor made of stainless steel with reversable cutting tips made of tungsten carbide​
22.608.00423-disc rotor made of steel 1.0570 with reversable cutting tips made of tungsten carbide, for grinding without heavy-metal contamination​
22.608.0039Parallel-section rotor made of stainless steel with cutting plates made of stainless steel​
22.608.0040Parallel-section rotor made of steel 1.0570 with cutting plates made of steel 1.1740, for grinding without heavy-metal contamination​


Hopper SM 50

22.785.0011​EasyInspect hopper made of stainless steel with PE plunger​


Bottom Sieves SM 50



Bottom sieves made of stainless steel 1.4404

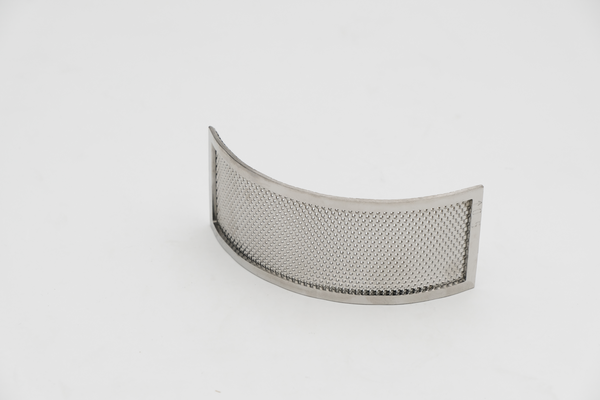

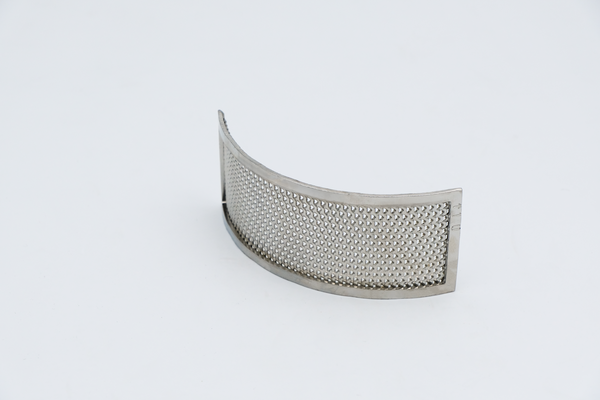

03.647.0574梯形孔, 0.25 mm

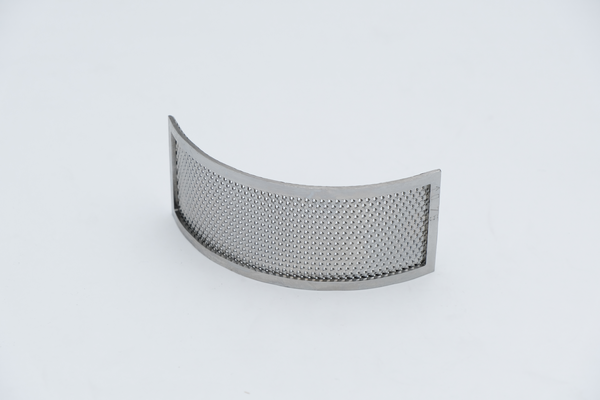

03.647.0575梯形孔, 0.5 mm

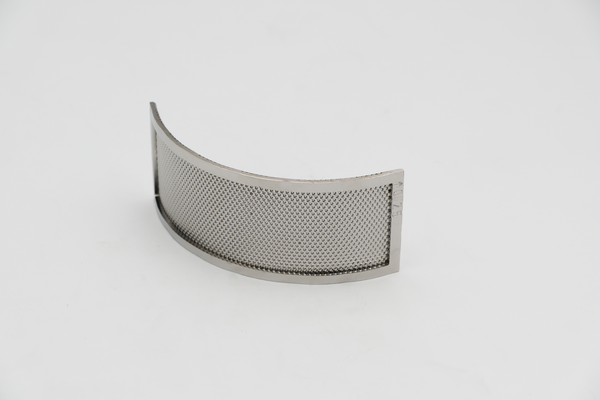

03.647.0576梯形孔, 0.75 mm
03.647.0577梯形孔, 1.00 mm

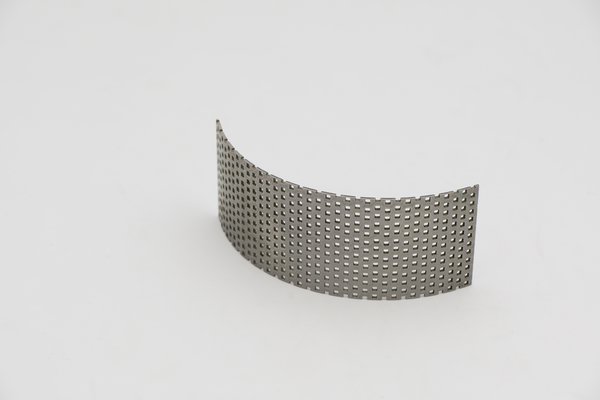

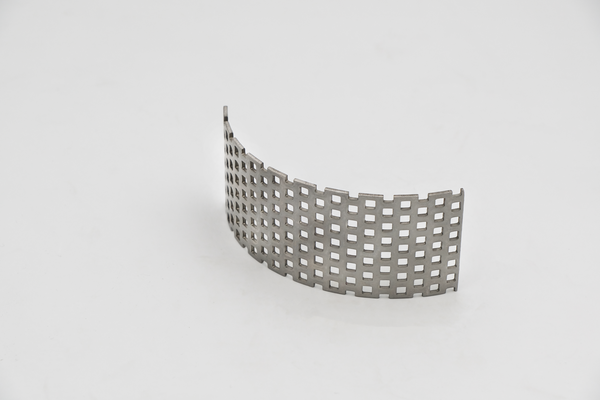

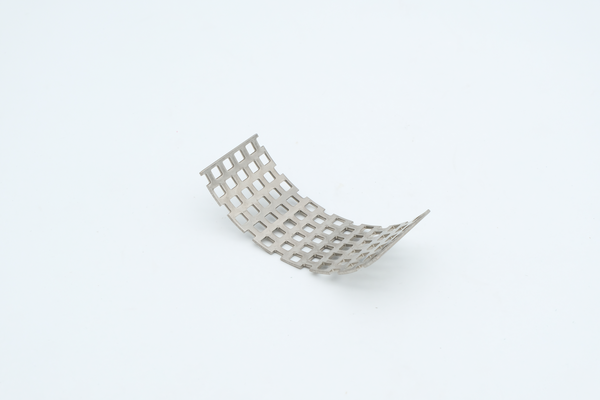

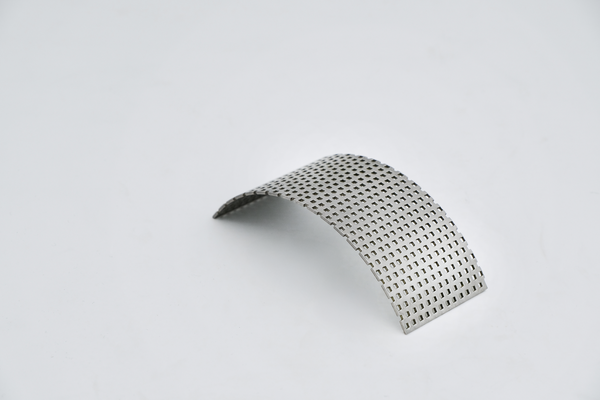

03.647.0578角孔, 2.00 mm
03.647.0579角孔, 4.00 mm
03.647.0580角孔, 6.00 mm
03.647.0581角孔, 8.00 mm
03.647.0582角孔, 10.00 mm
22.647.0001Bottom sieves made of stainless steel complete set of 9 bottom sieves 0.25 - 10 mm


Bottom sieves made of steel 1.0353 for grinding without heavy-metal contamination​

03.647.0583梯形孔, 0.25 mm
03.647.0584梯形孔, 0.5 mm
03.647.0585梯形孔, 0.75 mm
03.647.0586梯形孔, 1.00 mm
03.647.0587角孔, 2.00 mm
03.647.0588角孔, 4.00 mm
03.647.0589角孔, 6.00 mm
03.647.0590角孔, 8.00 mm
03.647.0591角孔, 10.00 mm
22.647.0002Bottom sieves made of steel 1.0353 complete set of 9 bottom sieves 0.25 - 10 mm


Accessories SM 50



試料受器

22.523.0001​Sample bottle 250 ml (10 pcs.)
22.523.0002​Sample bottle 500 ml (10 pcs.)

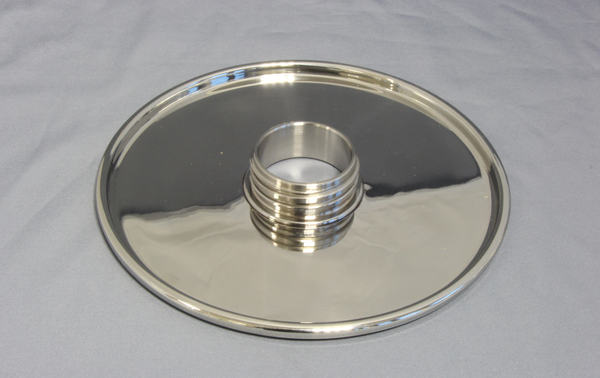

02.107.0493Lid for collecting receptacle cyclone 3l (only for cyclone)

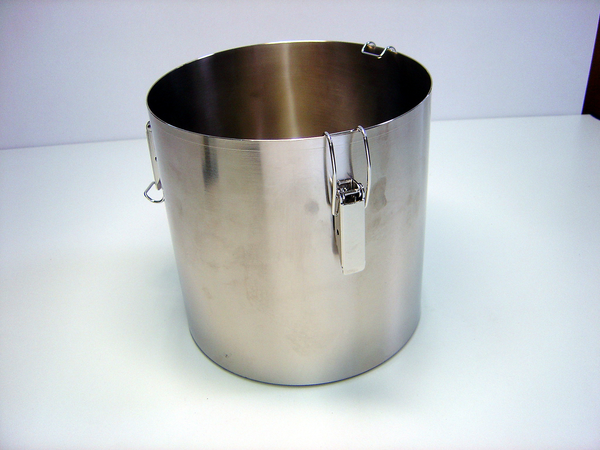

02.011.0031​Collecting receptacle 3 litres, stainless steel (for grinding with or without cyclone)
02.183.0146Adapter for collecting receptacle 3l and 5l (only for SM 50 gravity outlet)

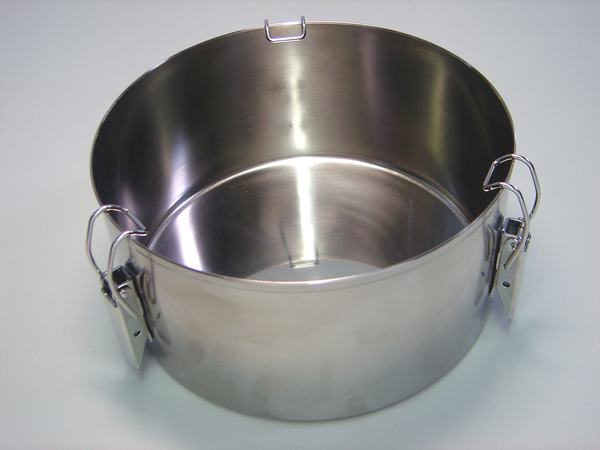

02.011.0029Collecting receptacle 5 litres, stainless steel (only for SM 50 gravity outlet)


Milling chambers

22.010.0007​Milling chamber made of aluminium with stainless steel double acting cutting bars for standard grinding applications
22.010.0008​Milling chamber made of aluminium with steel 1.1740 double acting cutting bars for grinding without heavy metal contamination
22.010.0009​Milling chamber made of stainless steel with stainless steel double acting cutting bars for corrosion resistant applications
22.010.0010Gravitiy chamber made of aluminium with stainless steel double acting cutting bars​
22.730.​0002Door insert made of aluminium
22.730.0003Door insert made of stainless steel


Stationary cutting bars for milling chambers​

22.152.0012​Double acting cutting bars made of stainless steel (3 pcs.)
22.152.0013Double acting cutting bars made of steel 1.1740 (3 pcs.) for grinding without heavy metal contamination
22.608.0043Adjustment tool for double acting cutting bars


Accessories for rotors

05.908.0001​Reversible cutting tips made of tungsten carbide for 3-disc (10 pcs.)​
22.151.0010​Cutting plates made of stainless steel for parallel section rotor​s (3 pcs.)
22.151.0011Cutting plates made of steel 1.1740 for parallel section rotors​ (3 pcs.)


Cyclones

22.935.0040​Cyclone made of stainless steel


Additional Items

22.748.0005​Industrial vacuum cleaner for mills, 230 V, 50/ 60 Hz (other electrical versions and spare filter bags available upon request)​
03.725.0047​PE plunger for EasyInspect hopper
22.225.0002ロータ取付具
99.200.0045IQ/OQ Documentation for SM 50​
